Rivet Rack Shelving Starter

  • Double rivet beams feature 14-gauge steel construction
  • Adjustable levels can hold at least 650 lbs
  • Easily adjust the beams without tools
  • Available In Stock
  • View More Details
Find A Republic Distributor
SKU: Rivet Rack Starter

Frequently Bought Together

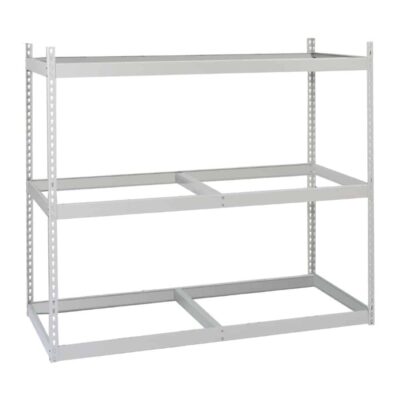

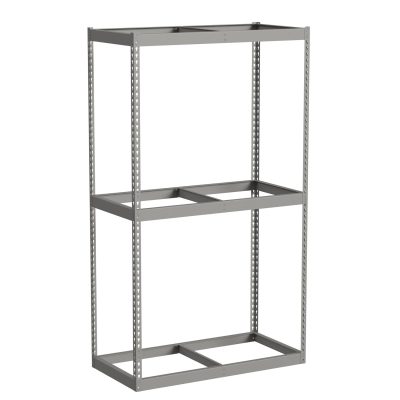

Republic’s rivet rack shelving starter is an economical solution for a variety of storage needs. This boltless racking system is a medium-duty rack that is ideal for use in either retail or other commercial use such as an office. This boltless metal rack allows access to items from all sides. The superior look and design of our boltless rivet shelving means it can work in the warehouse as well as on the sales floor. We offer these metal boltless racks with a durable powder coat finish available in Dove Gray.

Angle Posts

We make the rivet rack starter Angle Uprights out of 14-gauge steel. Each of our Rivet Rack Shelving starter sections include four angle uprights. Angle posts are used on all four corners of a single free standing rack. When using Add-On Units to create a longer row, the angle posts should be on the outer most corners. These 7-foot shelving posts feature keyhole slots so as to hold the rivet rack beams in place. Steel beams drop into the slots of the uprights to create a sturdy and rigid structure.

Double Rivet Beams

Our 14-gauge Medium-Duty Beams feature double rivets. This double rivet design creates rigid assembly as well as added strength. The double rivets easily slide into the keyhole slots on the uprights. Each rivet rack starter includes the beams necessary to create 3 or 4 levels. Each level consists of two width beams coupled with two depth beams. The levels easily adjust on 1-1/2-inch centers. Because of our design, these boltless shelving racks have an overall weight capacity of 1,000 lbs per level. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change.

Assembly and Installation

The rivet rack ships unassembled. Our rivet rack sections assemble easily without tools. Use this starter unit either alone or combine it with other 24-inch-deep boltless rack add-on sections to create a long run of commercial storage racks. Republic strongly recommends that all Industrial Shelving be properly anchored. Make sure your metal storage racks are installed plumb and level before anchoring them to the floor and/or wall. Use the Rivet Rack Foot Plates and Concrete Wedge Anchors to anchor your posts to the floor.

Optional Decking

Republic also offers many decking options for your rivet rack! Particle Board Decking is 5/8-inch thick and will be pre-cut to fit your boltless storage racks. Particle board decks are a durable and economical option for boltless steel racks. They are strong enough to handle most general storage applications. Wire Decking features a 6-gauge 2″ x 4″ wire mesh. These decking panels feature a baked on enamel finish. Wire decking also meets fire code standards for when you require sprinkler access to the levels of a storage rack.

View more Boltless Rivet Rack Shelving from Republic

Additional information

Weight N/A

Dove Gray


84" High



Package Quantity

1 Unit


1,000 lbs per Level

Level Width Capacity
48″ Wide 1,000 lbs
60″ Wide 800 lbs
72″ Wide 800 lbs
96″ Wide 650 lbs
