Slotted Angle

Product Highlights

Downloads

You can solve unique storage problems with ease using Republic slotted angle. You can build what you need, when and where you need it. Use steel angle to build either protective framing around your machinery or build a platform around assembly projects. Perforated steel will also make a great option for support framing for displays. Custom structures work in any place that needs non-standard sizes of storage racks. Republic has been making racking solutions in the USA since 1930.

Using Slotted Steel Angle

All steel perforated angles are clearly stamped on 3-inch-centers for quick, simple measuring and cutting. The oval horizontal and vertical holes also allow precise adjustment of angles. We put holes along both edges of the angle pieces. Depending on which style you get, there are more rows of holes on the wider edge. The heavy-duty slotted angle has the widest edge, thus having more mounting hole options. You can easily cut your perforated angle to size.

Republic slotted angle allows you to build structures without either drilling or welding. This lets you get things erected with a only a wrench. Our slotted metal angle is adjustable so you can make changes as you build. No having to take down and starting over. Just loosen a nut and bolt and adjust it within the slot. When you are done with your project you can reuse your offset slotted angle. Republic makes our perforated metal angle to stand up to everyday use.

Slotted Angle Features

Available in 10 packs of different lengths, Republic makes perforated slotted angle from rugged, cold-rolled steel. These specialty structure pieces come in both a medium-duty 14-gauge steel angle as well as a 12-gauge heavy-duty angle. All gauges of steel angle are 1-½-inches-deep. These all steel components have a non-flaking galvanized finish. The finish will help your custom structures stand up to heavy use and harsh environments. We include nuts and bolts with each 10 pack.

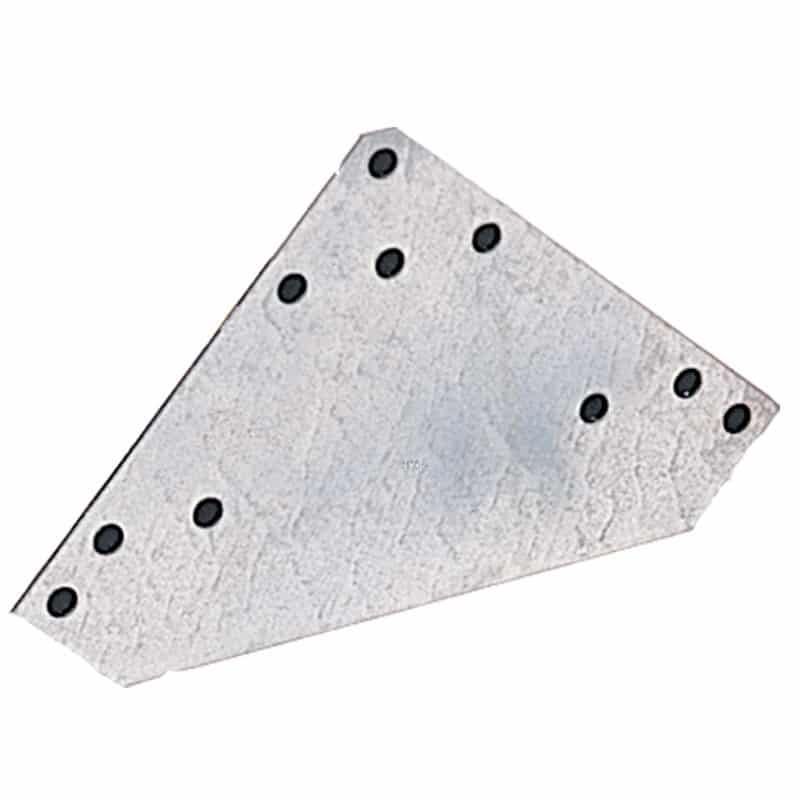

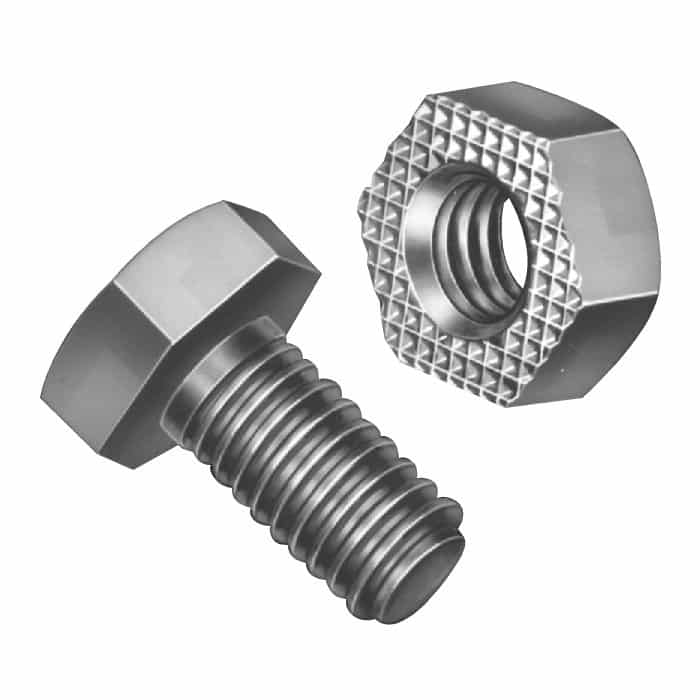

Accessories include bracket gussets to bolt upright and cross members to assure both stability and rigidity. Republic makes the gussets from 14-gauge cold-rolled steel in a galvanized finish. Nuts and bolts are available online in a pack of 100 so you have enough to build what you need. The bolts are ¾ inches and the hex head bolts are self-locking.

Looking for other racking? Check out Republic’s full line of Storage Racks.
