Product Highlights
- 14-Gauge Fully Welded Uprights
- 14-Gauge Medium-Duty Beams
- Includes Front-to-Back Supports
- Available In Multiple Sizes
| Width | Depth | Height | Levels | Starter | Add-on |
|---|---|---|---|---|---|
| 96″ | 42″ | 96″ | 2 | RSSFB096042096 | RSAFB096042096 |
| 144″ | 3 | RSSFB096042144 | RSAFB096042144 | ||
| 48″ | 96″ | 2 | RSSFB096048096 | RSAFB096048096 | |
| 144″ | 3 | RSSFB096048144 | RSAFB096048144 | ||
| 108″ | 42″ | 96″ | 2 | RSSFB108042096 | RSAFB108042096 |
| 144″ | 3 | RSSFB108042144 | RSAFB108042144 | ||
| 48″ | 96″ | 2 | RSSFB108048096 | RSAFB108048096 | |
| 144″ | 3 | RSSFB108048144 | RSAFB108048144 | ||
| 120″ | 42″ | 96″ | 2 | RSSFB120042096 | RSAFB120042096 |
| 144″ | 3 | RSSFB120042144 | RSAFB120042144 | ||
| 48″ | 96″ | 2 | RSSFB120048096 | RSAFB120048096 | |
| 144″ | 3 | RSSFB120048144 | RSAFB120048144 | ||
| 144″ | 42″ | 96″ | 2 | RSSFB144042096 | RSAFB144042096 |
| 144″ | 3 | RSSFB144042144 | RSAFB144042144 | ||
| 48″ | 96″ | 2 | RSSFB144048096 | RSAFB144048096 | |
| 144″ | 3 | RSSFB144048144 | RSAFB144048144 |

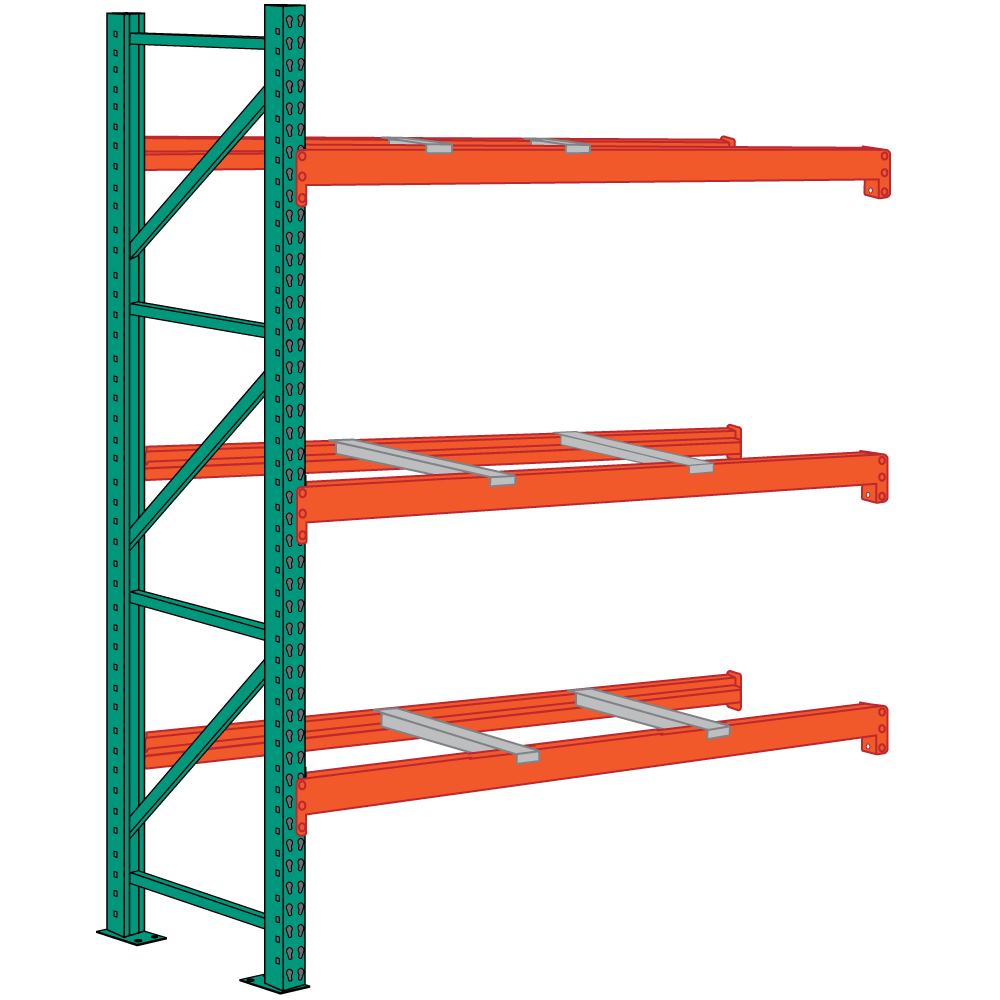

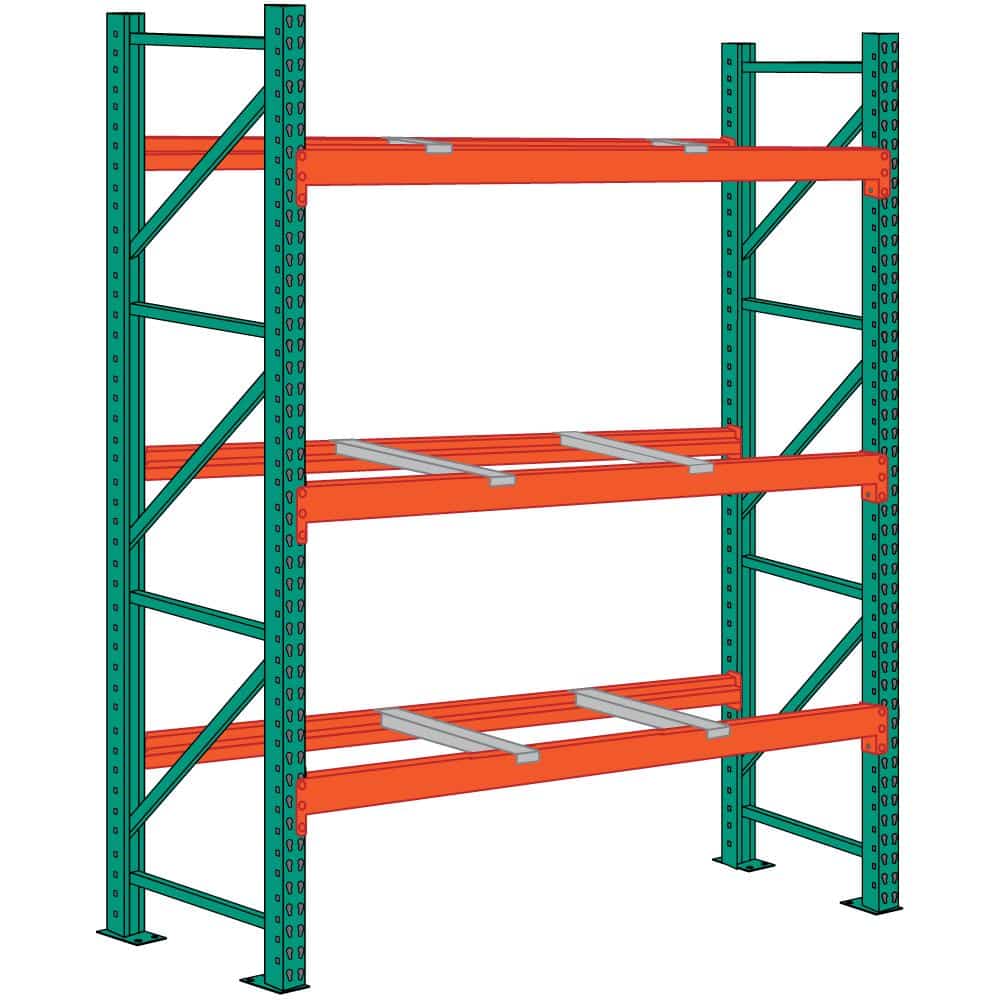

Pallet Racking with Front-to-Back Supports
Make the most of your vertical height with Republic pallet racking with front-to-back supports. These adjustable heavy-duty pallet racks feature a teardrop design that is interchangeable with all major teardrop style pallet racking. That means you can upgrade any damaged, weak, or worn out uprights and beams. There won’t be a need to change your whole system. Our pallet racks include a strong and smooth paint finish. This state-of-the-art powder coat application process ensures a finish that is impact as well as corrosion resistant.
WELDED UPRIGHTS
The uprights feature fully welded 14-gauge steel construction. These teardrop pallet rack systems have heavy-duty bracing as well as base plates for added stability. The tapered keyhole slots provide quick, easy vertical adjustment of beams to create optimal pallet storage solutions. There are also no “dead spots” in the upright posts to disrupt your placement of beams along the entire height of the post.
DURABLE STEEL BEAMS
Republic makes the medium-duty beams from 14-gauge steel. Each end of the beam has three studs to engage the teardrop holes of the upright. An enhanced automatic lock assembly provides positive beam-to-upright engagement. Easily adjust the beams on 2-inch vertical centers. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change.

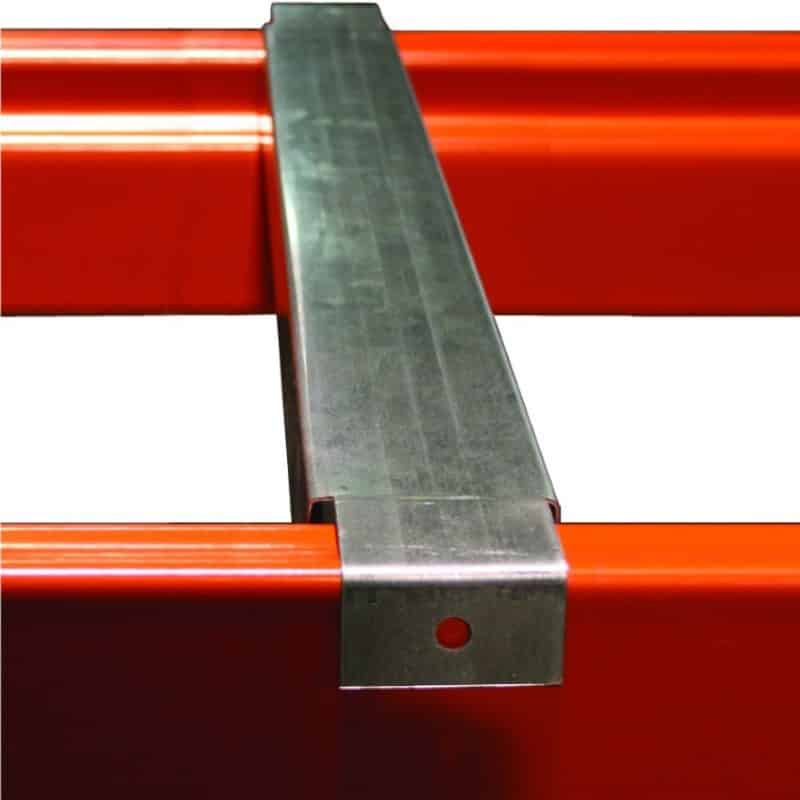

Front-to-Back Supports
These pallet racking systems include front-to-back supports. The supports install easily onto the beams without tools. They help reduce the chance of misplaced pallets falling through the beams. The supports will help minimize beam rotation while supporting heavy loads. This will maintain both the rigidity and stability of the pallet storage racks. The galvanized steel of the supports helps them stand up to harsh warehouse environments.
ASSEMBLY AND INSTALLATION
These heavy-duty metal storage racks assemble easily without tools. Use a starter unit either alone or combine it with add-on sections to create a long run of pallet racking. Republic strongly recommends that all storage racks be properly anchored. Make sure to install your heavy-duty metal storage racks plumb and level before anchoring them to the floor and/or wall.
Looking for other pallet racking? Check out Republic’s full line of Pallet Racks.
