Gravity Flow Rack

  • Double rivet beams feature 14-gauge steel construction
  • 4 adjustable levels hold up to 1,000 lbs
  • Wire decking features a curled up front waterfall edge
  • Available In Stock
  • View More Details
Find A Republic Distributor
SKU: Gravity Flow Rack

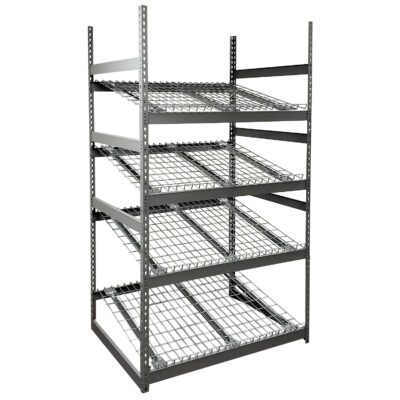

Republic’s gravity flow rack is an economical solution for a variety of storage needs. We offer this gravity racking system with a durable powder coat finish available in Dove Gray. This will help protect your gravity flow shelving systems from everyday use. Use this rack for storing items with quick turnover rates in order picking and retail inventory. This rack is also ideal for pharmaceuticals and healthcare facilities that need to store medical supplies and inventory rotation for time-sensitive products.


A gravity flow racking system has levels that are offset so that the back of a level is higher than the front. When someone takes the item in the front, the rest of the items will slide forward. This will allow items always be at the front. You can use a gravity flow rack in a warehouse to make picking items easier. Workers won’t have to strain and reach for items on the back side of a rack level. Built from our boltless Rivet Rack Shelving, this gravity flow rack is easy to assemble and supports 1,000 lbs per level.

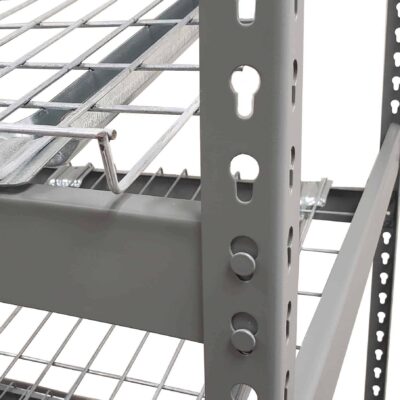

We make the uprights for our gravity flow rack out of 14-gauge steel. Each of our gravity feed racks include four Angle Uprights. These posts feature keyhole slots so as to hold the rivet rack beams in place. Steel beams drop into the slots of the uprights to create a sturdy and rigid structure.


Our 14-gauge Medium-Duty Beams feature double rivets. This double rivet design creates rigid assembly as well as added strength. The double rivets easily slide into the keyhole slots on the uprights. These gravity flow racks include the beams necessary to create 4 levels. Each level consists of two width beams coupled with two depth beams. The levels easily adjust on 1-1/2-inch centers. Because of our design, these storage racks have an overall weight capacity of 1,000 lbs per level. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change.


The Republic gravity flow rack also includes wire decking. Our wire decking on this gravity rack features waterfall edges. The back edge sits on the beam and helps keep the decking from shifting down. The front edge is curled up so it prevents items from sliding off the rack. The wire decking screws into the beam to keep it secured. This strong decking can handle heavy items. The galvanized finish is resistant to corrosion.


While our gravity flow racks ship unassembled, you can put them together with ease. Republic strongly recommends that all gravity fed racking systems be properly anchored. Make sure your metal storage racks are installed plumb and level before anchoring them to the floor and/or wall. Use the Rivet Rack Foot Plates and Wedge Anchors to anchor your posts to the floor.

View more Specialty Storage options from Republic

Additional information

Weight N/A

48" Wide


36" Deep



Package Quantity

1 Unit

Number Of Levels



1,000 lbs per Level
