Product Highlights
- 14-Gauge Fully Welded Uprights
- 14-Gauge Heavy-Duty Beams
- Includes Front-to-Back Supports
- Available In Multiple Sizes
Downloads
| Capacity | Width | Depth | Height | Levels | Starter | Add-on |
|---|---|---|---|---|---|---|
| 2,600 lbs per Level | 60″ | 24″ | 72″ | 3 | RS67211S | RS67211 |
| 84″ | 3 | RS67221S | RS67221 | |||
| 96″ | 4 | RS67231S | RS67231 | |||
| 36″ | 72″ | 3 | RS67213S | RS67213 | ||
| 84″ | 3 | RS67223S | RS67223 | |||
| 96″ | 4 | RS67233S | RS67233 | |||
| 48″ | 72″ | 3 | RS67215S | RS67215 | ||
| 84″ | 3 | RS67225S | RS67225 | |||
| 96″ | 4 | RS67235S | RS67235 |
| Capacity | Width | Depth | Height | Levels | Starter | Add-on |
|---|---|---|---|---|---|---|
| 1,900 lbs per Level | 72″ | 24″ | 72″ | 3 | RS67311S | RS67311 |
| 84″ | 3 | RS67321S | RS67321 | |||
| 96″ | 4 | RS67331S | RS67331 | |||
| 36″ | 72″ | 3 | RS67313S | RS67313 | ||
| 84″ | 3 | RS67323S | RS67323 | |||
| 96″ | 4 | RS67333S | RS67333 | |||
| 48″ | 72″ | 3 | RS67315S | RS67315 | ||
| 84″ | 3 | RS67325S | RS67325 | |||
| 96″ | 4 | RS67335S | RS67335 |
| Capacity | Width | Depth | Height | Levels | Starter | Add-on |
|---|---|---|---|---|---|---|
| 1,650 lbs per Level | 96″ | 24″ | 72″ | 3 | RS67511S | RS67511 |
| 84″ | 3 | RS67521S | RS67521 | |||
| 96″ | 4 | RS67531S | RS67531 | |||
| 36″ | 72″ | 3 | RS67513S | RS67513 | ||
| 84″ | 3 | RS67523S | RS67523 | |||
| 96″ | 4 | RS67533S | RS67533 | |||
| 48″ | 72″ | 3 | RS67515S | RS67515 | ||
| 84″ | 3 | RS67525S | RS67525 | |||
| 96″ | 4 | RS67535S | RS67535 |

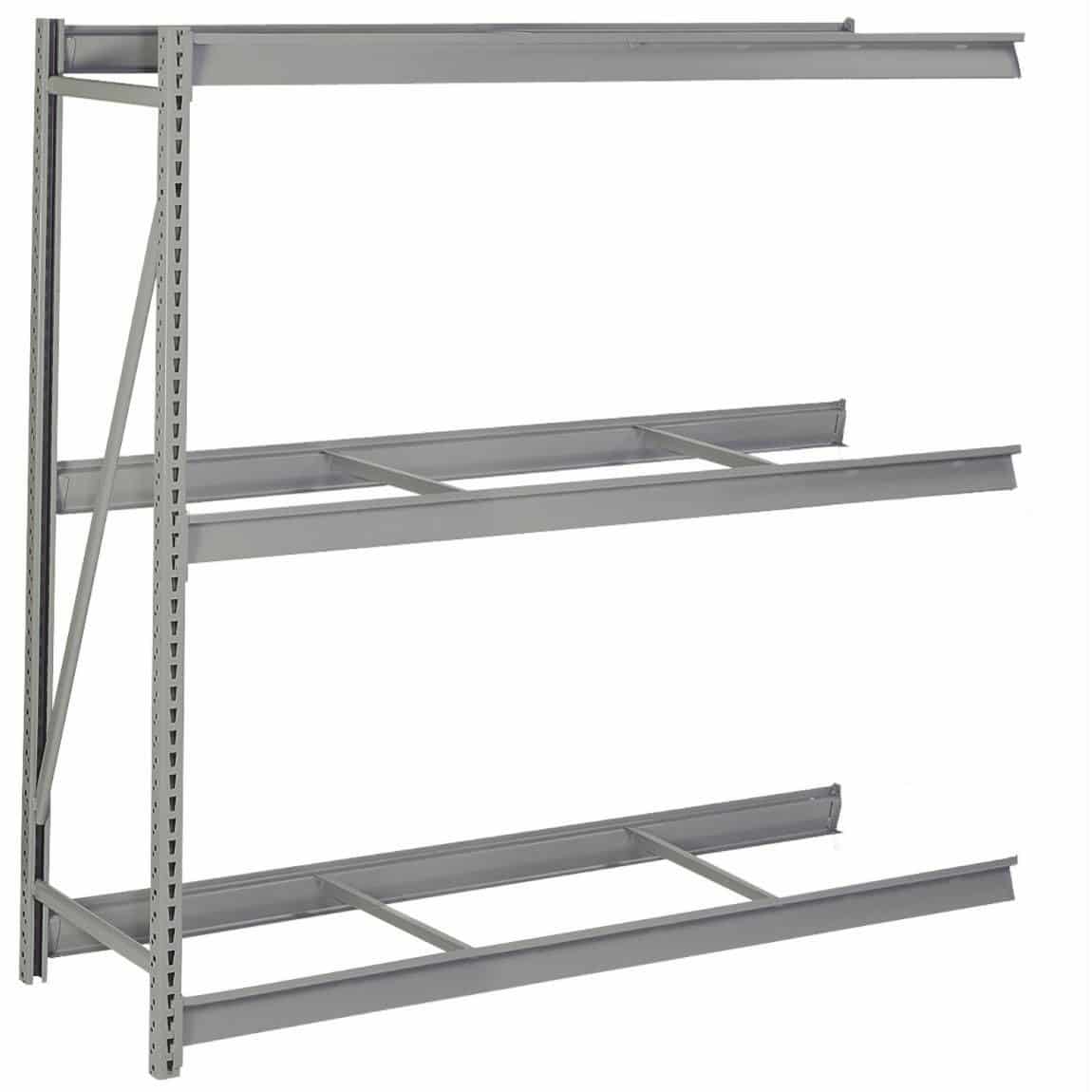

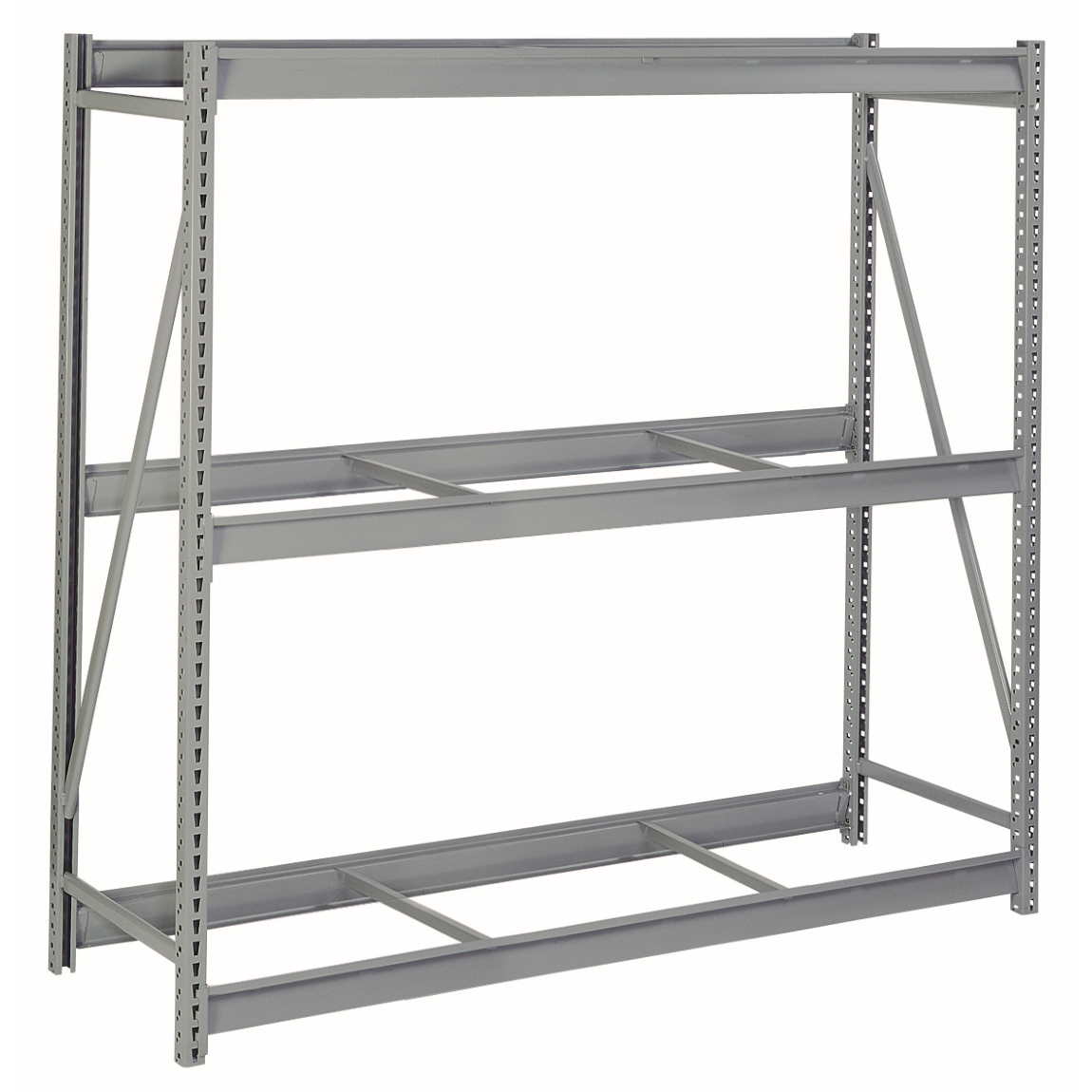

Bulk Storage Racks with Front-to- Back Supports
Republic’s bulk storage racks with front-to-back supports are perfect for the hand-loading of intermediate weight bulky items. In addition to storing merchandise in shipping and receiving departments, stores can use these industrial metal racks in retail locations for display as well as for back stock. We offer these steel storage racks with a durable powder coat finish available in Dove Gray.
WELDED UPRIGHTS
The bulk storage rack uprights are made from fully welded 14-gauge steel. They feature tubular bracing that is MIG welded to the post for added stability. The slots of the uprights provide a quick and easy vertical adjustment of beams to create optimal storage solutions. There are also no “dead spots” in the upright posts to disrupt your placement of beams along the entire height of the post.
HEAVY-DUTY BEAMS
Republic makes the heavy-duty beams of 14-gauge steel. Our unique “Z” beam design increases the strength and load capacity of the the steel beams while also resisting tipping and eliminating wasted space. The MIG welded beam clips give added strength. The beams adjust on 1-1/2-inch vertical centers. A fold in lock tab easily engages with the post to prevent accidental displacement.
FRONT-TO-BACK SUPPORTS
These bulk storage racks include a front-to-back supports. The supports install easily onto the heavy-duty metal rack without tools. They help minimize beam rotation when supporting heavy loads. This maintains both the rigidity and stability of your storage rack. You can also use them as supports to hold your own plywood decking.
ASSEMBLY AND INSTALLATION
These heavy-duty metal storage racks assemble without tools. Use a starter unit alone or combine it with add-on sections to create a long run of storage racks. Republic strongly recommends that all storage racks be properly anchored. Make sure to install your heavy-duty metal storage racks plumb and level before anchoring them to the floor and/or wall.
Looking for other racking? Check out Republic’s full line of Bulk Storage Racks.
