Pallet Rack Shim Plate For Bolted Upright
- Corrects for uneven floors to ensure level and stable rack installation
- Improves overall stability and prevents potential tipping hazards
- Easily nests under the footplate for simple integration
- Made from heavy-duty steel for long-lasting performance
- View More Details
- Description
- Additional information
- Downloads
Description

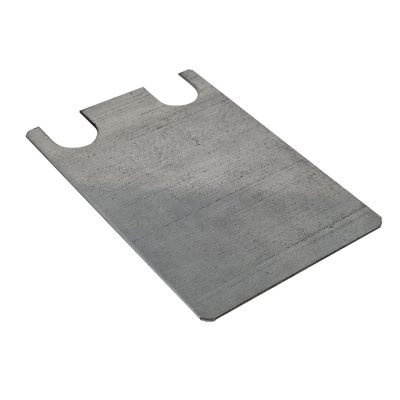

You can use the Republic pallet rack steel shim plate to make sure your rack uprights are level. Not all warehouse or facility floors will be level especially in older buildings. Installing pallet rack on an uneven floor will result in dangerous, wobbly racking which can lead to tipping. You can use this shim plate to get your new Storage Racks level during installation. The shim plate easily nests under the footplate of the Upright. We construct the plate out of heavy-duty steel. The leveling shim plate comes unpainted.
This pallet rack shim plate can fit all Republic pallet rack uprights. You can use multiple shim plates to guarantee a level and secure installation. The holes in the shim plate align with the holes in the foot plate. To insure minimum stability standards, Pallet Racks should be level, plumb, as well as properly anchored. Republic also offers Pallet Rack Concrete Wedge Anchors to make sure your rack is secured to the floor. You should not use shim plates unless you are also using concrete wedge anchors.
View more Pallet Racking Accessories from Republic
Additional information
| Weight | N/A |
|---|---|
| Color | No Finish |
| Package Quantity | 1 Unit |
| Material | Galvanized Steel |
| Gauge | 16-Gauge |
| Use With | Standard Pallet Rack Bolted Upright Foot Plate, Heavy-Duty Pallet Rack Bolted Upright Foot Plate |
| Size | 3-1/2"w x 5"d, 5"w x 8"d |
