Pallet Rack Beam

  • Features 14-gauge all-welded steel construction
  • Available In Stock
  • Made in the USA
  • View More Details
Find A Republic Distributor
SKU: Pallet Rack Beam


Pallet racking lets you make the most of your vertical height. The pallet rack beam features studs to fit with all major teardrop style Pallet Racking. This pallet rack beam is an ideal solution for most warehouses. That means you can upgrade any damaged, weak, or worn out teardrop beams. Because of our pallet rack component design, there won’t be a need to change your whole system.

Steel Beam Features

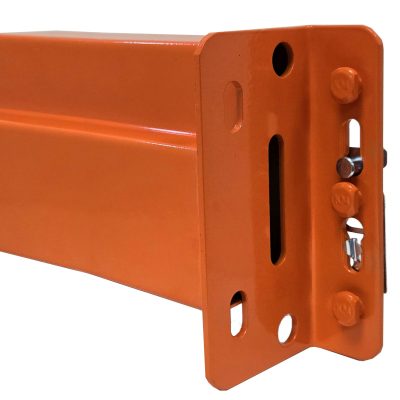

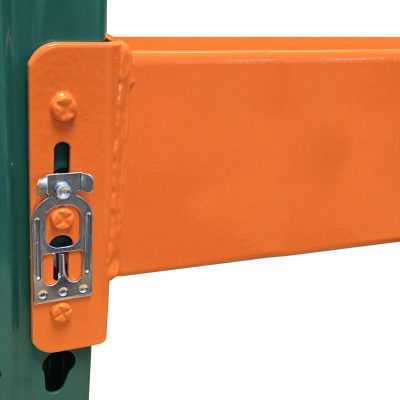

We make the pallet rack beam from 14-gauge steel. The roll formed beams feature an integrated 1-5/8-inch step for decking and are totally enclosed for clean applications. An enhanced automatic lock assembly also provides positive beam-to-upright engagement. This automatic lock improves installation speed and safety. Each end of the medium-duty beam has three studs while the heavy-duty beam has 4. The studs engage the teardrop holes of the upright. Easily adjust the beams on 2-inch vertical centers. Since the beams install without tools it’s easy to adjust your level spacing when your storage needs change.

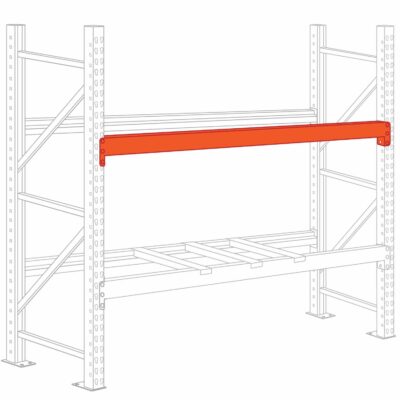

Use two beams together to create a level. Add a single beam in the back to prevent items from being pushed off the back of the rack system. All capacities of metal storage racks are also based on evenly distributed loads on a pair of beams. Pallet rack beams are available in our Safety Orange powder coat paint finish.

Options and Installation

Add more uprights and beams to your pallet rack beams to create the perfect storage solution. Add other Pallet Rack Accessories such as decking and rack guards. Republic strongly recommends you to properly anchor your storage racks. Make sure to install your heavy-duty metal Storage Racks plumb and level before anchoring them to the floor and/or wall. Use the pallet rack Shim Plate and Concrete Wedge Anchors to anchor your uprights to the floor.

View more Pallet Racking Uprights and Beams from Republic

Additional information

Weight N/A

Safety Orange

Package Quantity

1 Unit

Level Width Gauge Capacity
96″ Wide Medium-Duty 5,200 lbs
Heavy-Duty 8,330 lbs
108″ Wide Medium-Duty 6,320 lbs
Heavy-Duty 9,940 lbs
120″ Wide Medium-Duty 6,140 lbs
Heavy-Duty 8,920 lbs
144″ Wide Medium-Duty 6,790 lbs
Heavy-Duty 9,370 lbs
