Bulk Storage Racks with Ribbed Decking

Product Highlights

Downloads

Capacity Width Depth Height Levels Starter Add-on
2,600 lbs per Level 60″ 24″ 72″ 3 RS67211SR RS67211R
84″ 3 RS67221SR RS67221R
96″ 4 RS67231SR RS67231R
36″ 72″ 3 RS67213SR RS67213R
84″ 3 RS67223SR RS67223R
96″ 4 RS67233SR RS67233R
48″ 72″ 3 RS67215SR RS67215R
84″ 3 RS67225SR RS67225R
96″ 4 RS67235SR RS67235R
Capacity Width Depth Height Levels Starter Add-on
1,900 lbs per Level 72″ 24″ 72″ 3 RS67311SR RS67311R
84″ 3 RS67321SR RS67321R
96″ 4 RS67331SR RS67331R
36″ 72″ 3 RS67313SR RS67313R
84″ 3 RS67323SR RS67323R
96″ 4 RS67333SR RS67333R
48″ 72″ 3 RS67315SR RS67315R
84″ 3 RS67325SR RS67325R
96″ 4 RS67335SR RS67335R
Capacity Width Depth Height Levels Starter Add-on
1,650 lbs per Level 96″ 24″ 72″ 3 RS67511SR RS67511R
84″ 3 RS67521SR RS67521R
96″ 4 RS67531SR RS67531R
36″ 72″ 3 RS67513SR RS67513R
84″ 3 RS67523SR RS67523R
96″ 4 RS67533SR RS67533R
48″ 72″ 3 RS67515SR RS67515R
84″ 3 RS67525SR RS67525R
96″ 4 RS67535SR RS67535R

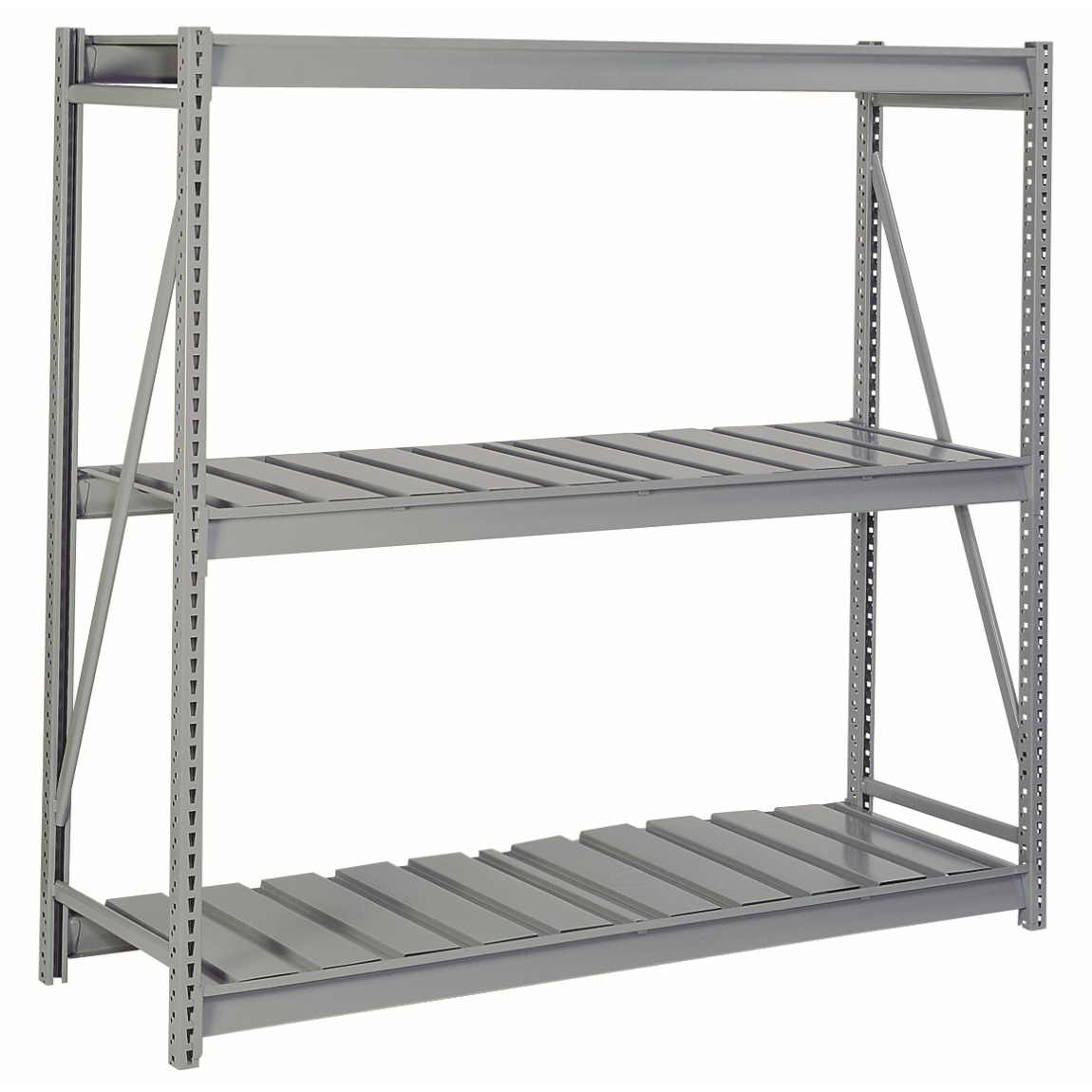

Bulk Storage Racks with Ribbed Decking

Republic’s bulk storage racks with ribbed decking are perfect for the hand-loading of intermediate weight bulky items. In addition to storing merchandise in shipping and receiving departments, stores can use these industrial metal racks in retail locations for display as well as for back stock. We offer these steel storage racks with a durable powder coat finish available in Dove Gray.

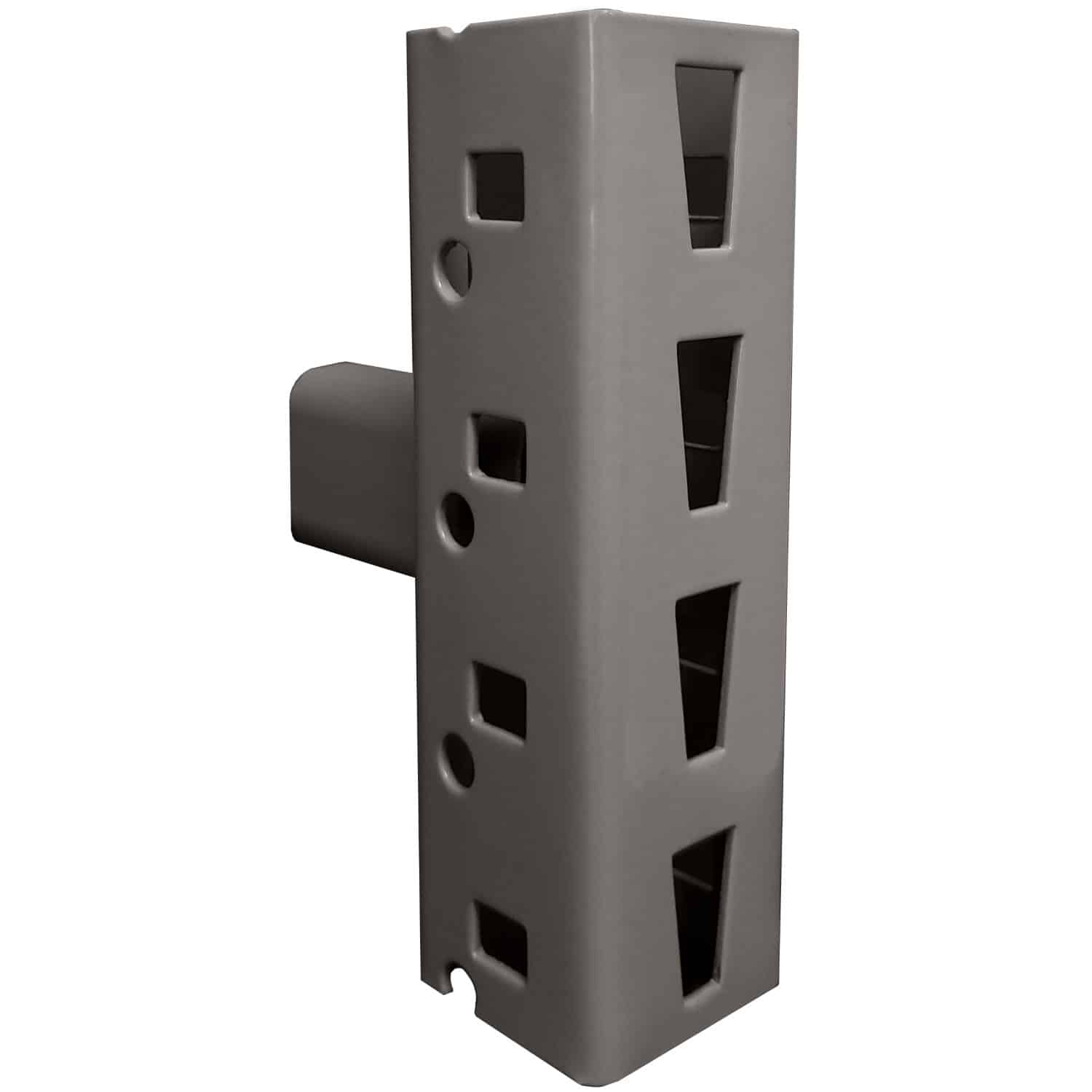

WELDED UPRIGHTS

The bulk storage rack uprights are made from fully welded 14-gauge steel. They feature tubular bracing that is MIG welded to the post for added stability. The slots of the uprights provide a quick and easy vertical adjustment of beams to create optimal storage solutions. There are also no “dead spots” in the upright posts to disrupt your placement of beams along the entire height of the post.

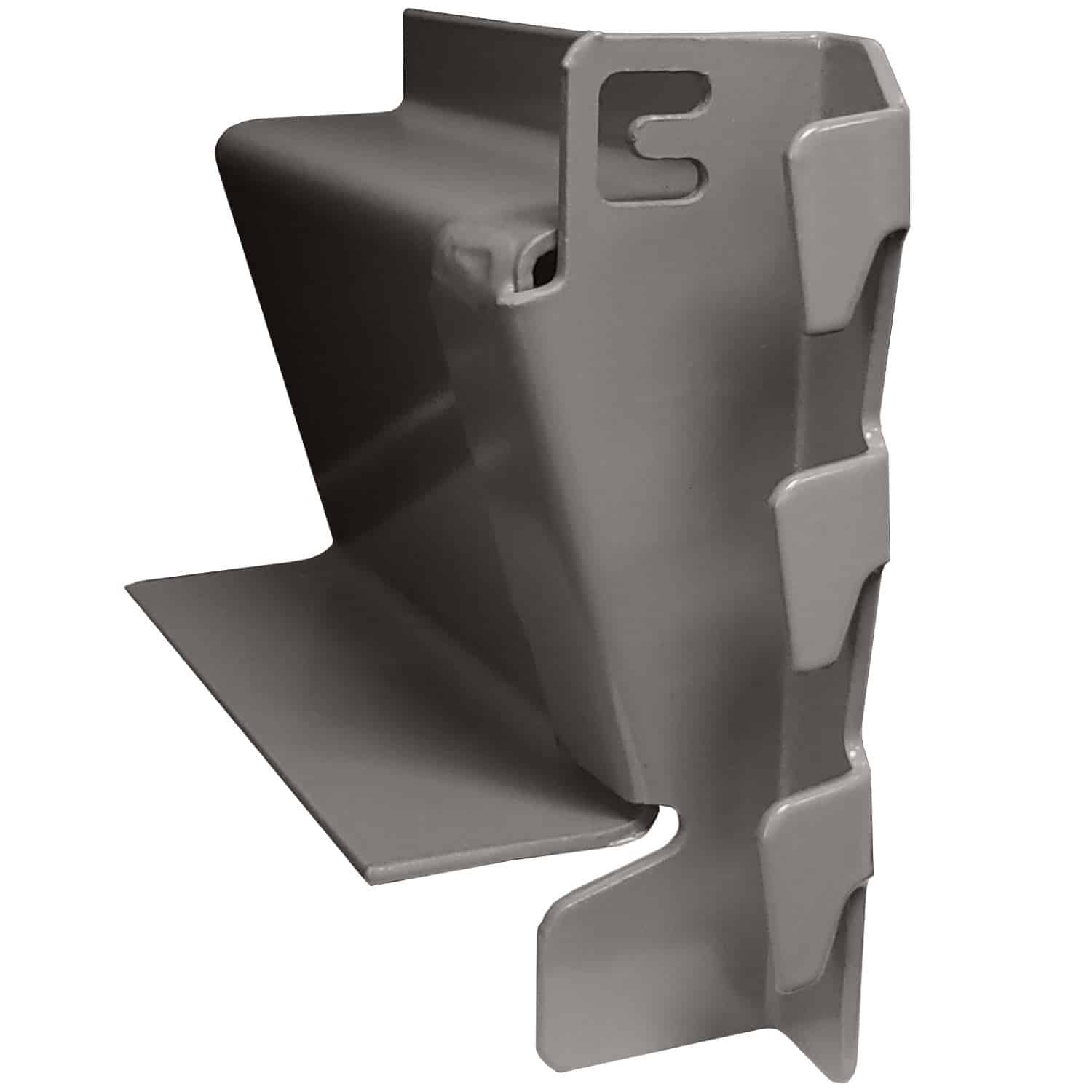

HEAVY-DUTY BEAMS

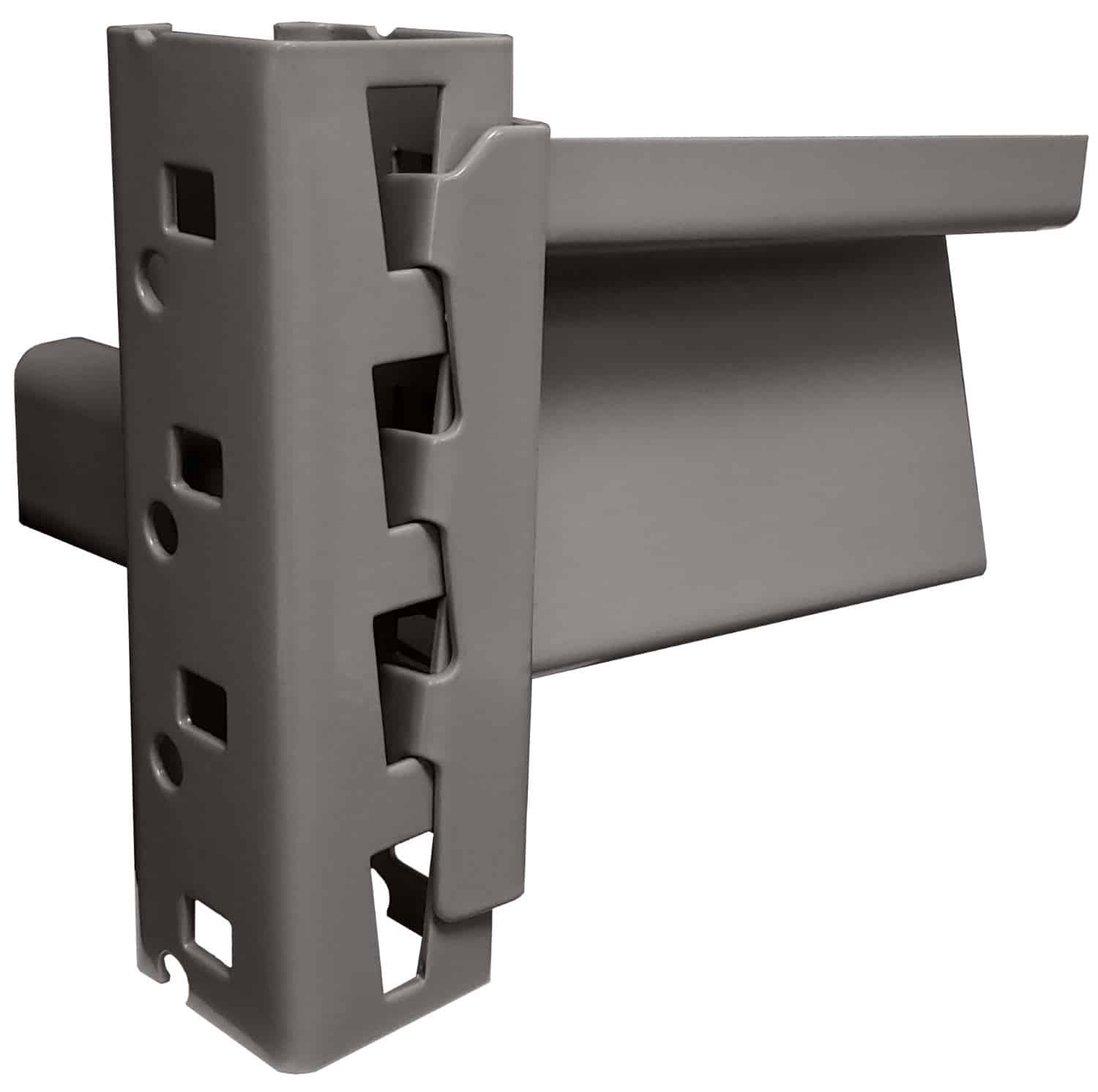

Republic makes the heavy-duty beams of 14-gauge steel. Our unique “Z” beam design increases the strength and load capacity of the the steel beams while also resisting tipping and eliminating wasted space. The MIG welded beam clips give added strength. The beams adjust on 1-1/2-inch vertical centers. A fold in lock tab easily engages with the post to prevent accidental displacement.

RIBBED DECKING

These bulk storage racks include ribbed decking panels. The 1-3/4″w x 5/8″d ribs allow for space to grab packages easily while preventing pinched fingers. Made from 20-gauge steel, these ribbed decking panels rest easily on the step of the beams. Front-to-back supports under the decking panels help minimize beam rotation when supporting heavy loads. This maintains both the rigidity and stability of your industrial rack shelving.

ASSEMBLY AND INSTALLATION

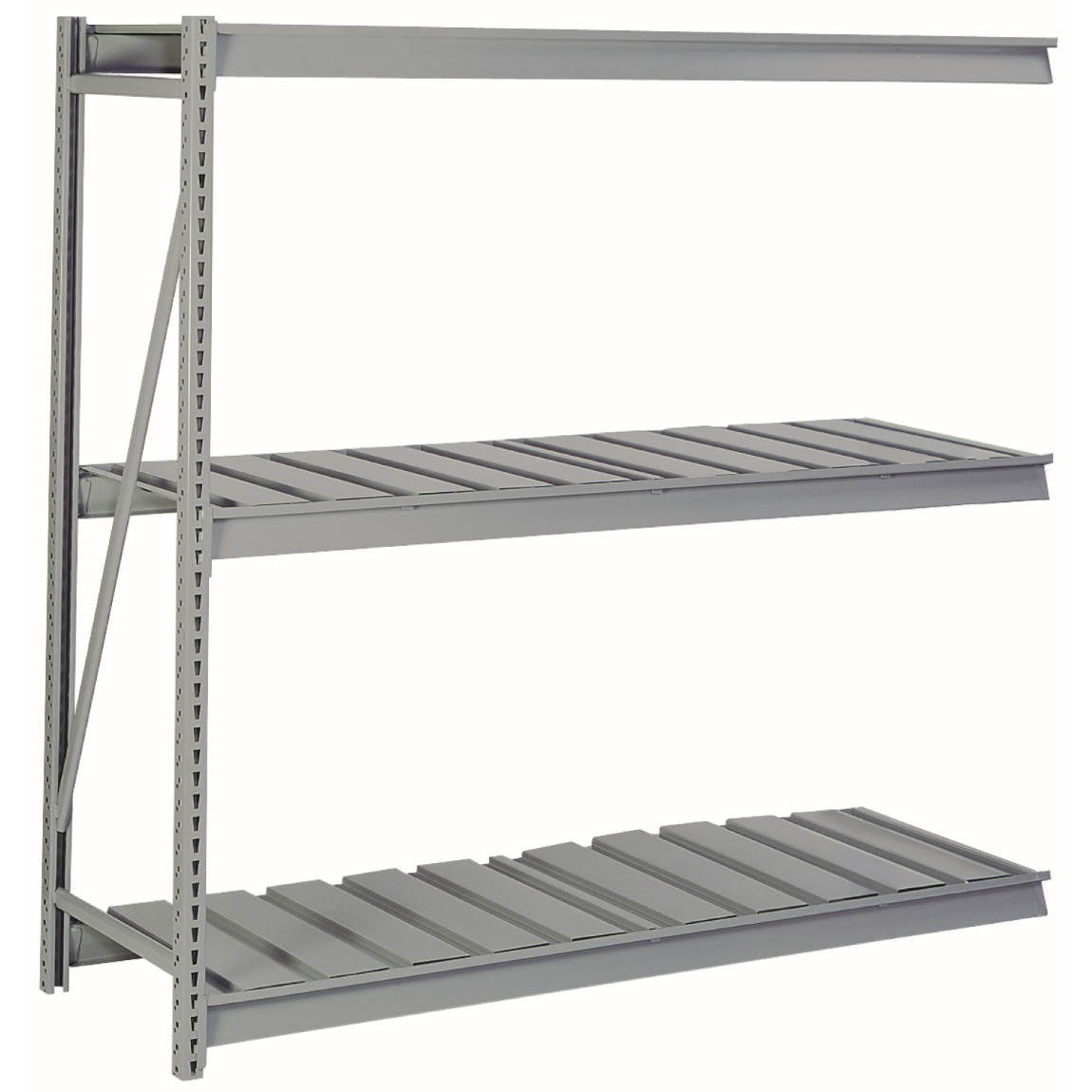

These heavy-duty metal storage racks assemble without tools. Use a starter unit alone or combine it with add-on sections to create a long run of storage racks. Republic strongly recommends that all storage racks be properly anchored. Make sure to install your heavy-duty metal storage racks plumb and level before anchoring them to the floor and/or wall.

Looking for other racking? Check out Republic’s full line of Bulk Storage Racks.
